DAN CHERRY'S PROCEDURE

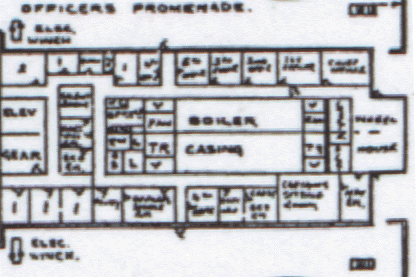

Using the diagram above as a guide put plastic pieces as dividers in the appropriate places to give a little depth for the rooms. Also add a corridor behind the entry door. (There is a porthole on the upper part of this door so this accounts for my adding the hall).

I've painted the window frames, rust brown with a little bit of dark red in it. This is based on the 1986 expedition when JJ got close to one of the windows and commentary said that paint still clung to the frames. Cameron's movie has them a dark brass color. Mine is about that color but with a little more brown tint.

UPDATE.

Just aft of the Officer's Quarters was the Marconi Room. You may want to add this as it can be seen through the skylight above it.

This is a photo of Dan Cherry's version of the area.
